SPECIFICATIONS

  • Options

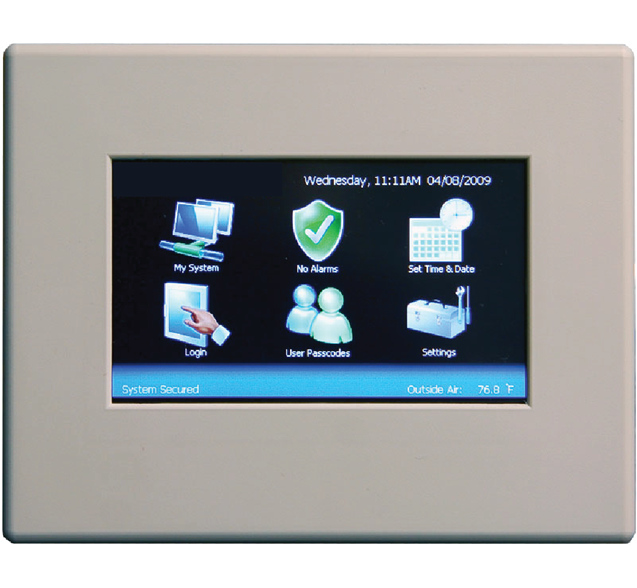

    System Manager Touchscreen
    • System Manager Touch Screen – Limited Access. The SMTS-L provides an easy to use graphical menu-driven interface for End-Users. It allows the user to view status, change Space Temperature Setpoints and Schedules, and view available alarms.
    • System Manager TS II Operator Interface. The System Manager TS provides an easy to use graphical menu-driven interface to enable the operator to view the status and adjust setpoints. This device is consider an Operator Interface because it provides full access to the controller.  Note: This device is not compatible with VCCX2 Controllers.

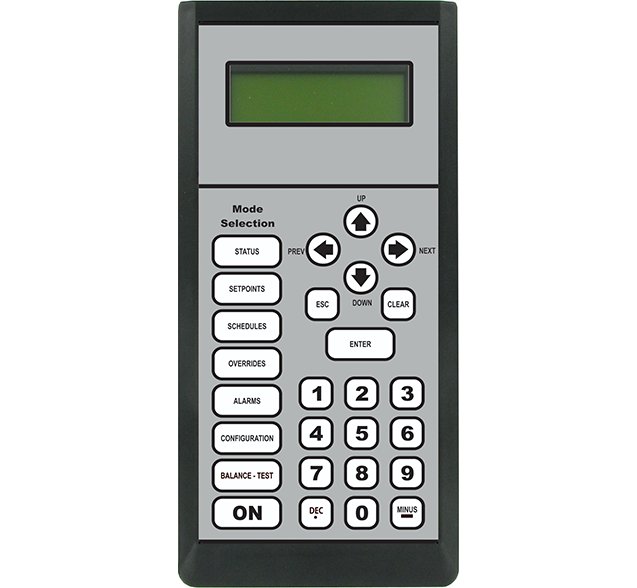

    Modular Service Tool
    The Modular Service Tool SD is a field technician operator interface that provides a direct link to enable the technician to view the status, configure, and adjust the setpoints of all Orion Controllers including VCCX2 Controller. This device was designed to be hand-carried and it’s rugged plastic housing provides superior protection for use in the field.

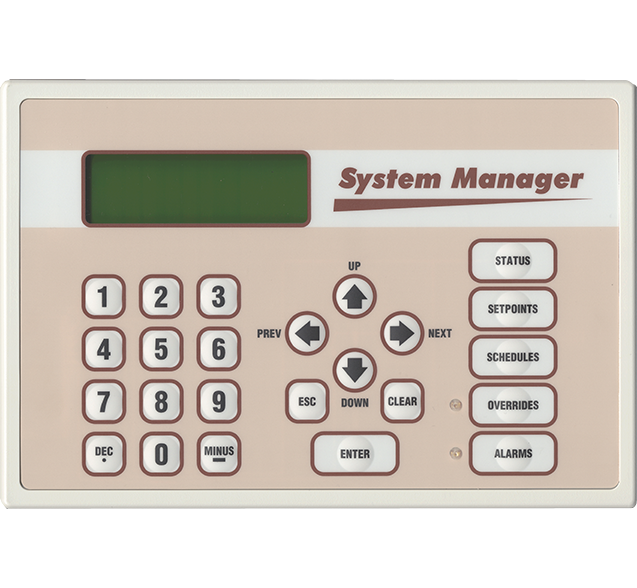

    Modular System Manager SD
    The Module System Manager SD is an Operator Interface that allows you to perform a full configuration of your controller. This device is compatible with all Orion Controls products including VCCX2 Controller.

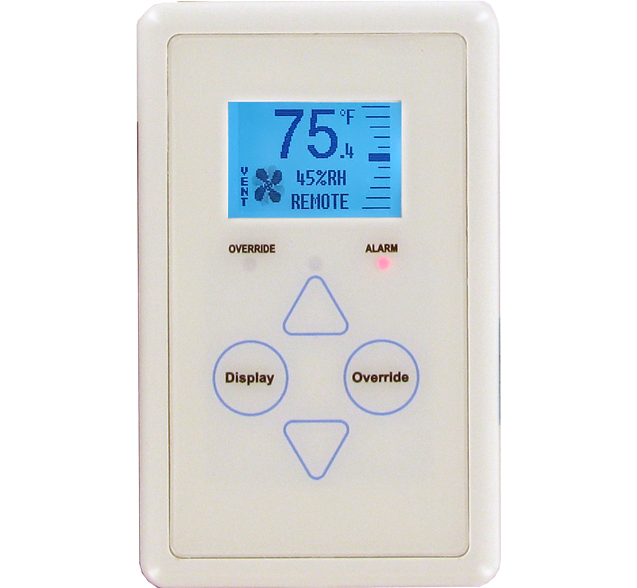

    E-BUS Digital Display
    The E-BUS Digital Display shows the active space temperature and space humidity the VCCX2 is currently using. The display does not have onboard temperature and relative humidity sensing capabilities.

System Manager Touchscreen
  • System Manager Touch Screen – Limited Access. The SMTS-L provides an easy to use graphical menu-driven interface for End-Users. It allows the user to view status, change Space Temperature Setpoints and Schedules, and view available alarms.
  • System Manager TS II Operator Interface. The System Manager TS provides an easy to use graphical menu-driven interface to enable the operator to view the status and adjust setpoints. This device is consider an Operator Interface because it provides full access to the controller.  Note: This device is not compatible with VCCX2 Controllers.


Modular Service Tool
The Modular Service Tool SD is a field technician operator interface that provides a direct link to enable the technician to view the status, configure, and adjust the setpoints of all Orion Controllers including VCCX2 Controller. This device was designed to be hand-carried and it’s rugged plastic housing provides superior protection for use in the field.

Modular System Manager SD
The Module System Manager SD is an Operator Interface that allows you to perform a full configuration of your controller. This device is compatible with all Orion Controls products including VCCX2 Controller.

E-BUS Digital Display
The E-BUS Digital Display shows the active space temperature and space humidity the VCCX2 is currently using. The display does not have onboard temperature and relative humidity sensing capabilities.
