V3 Series

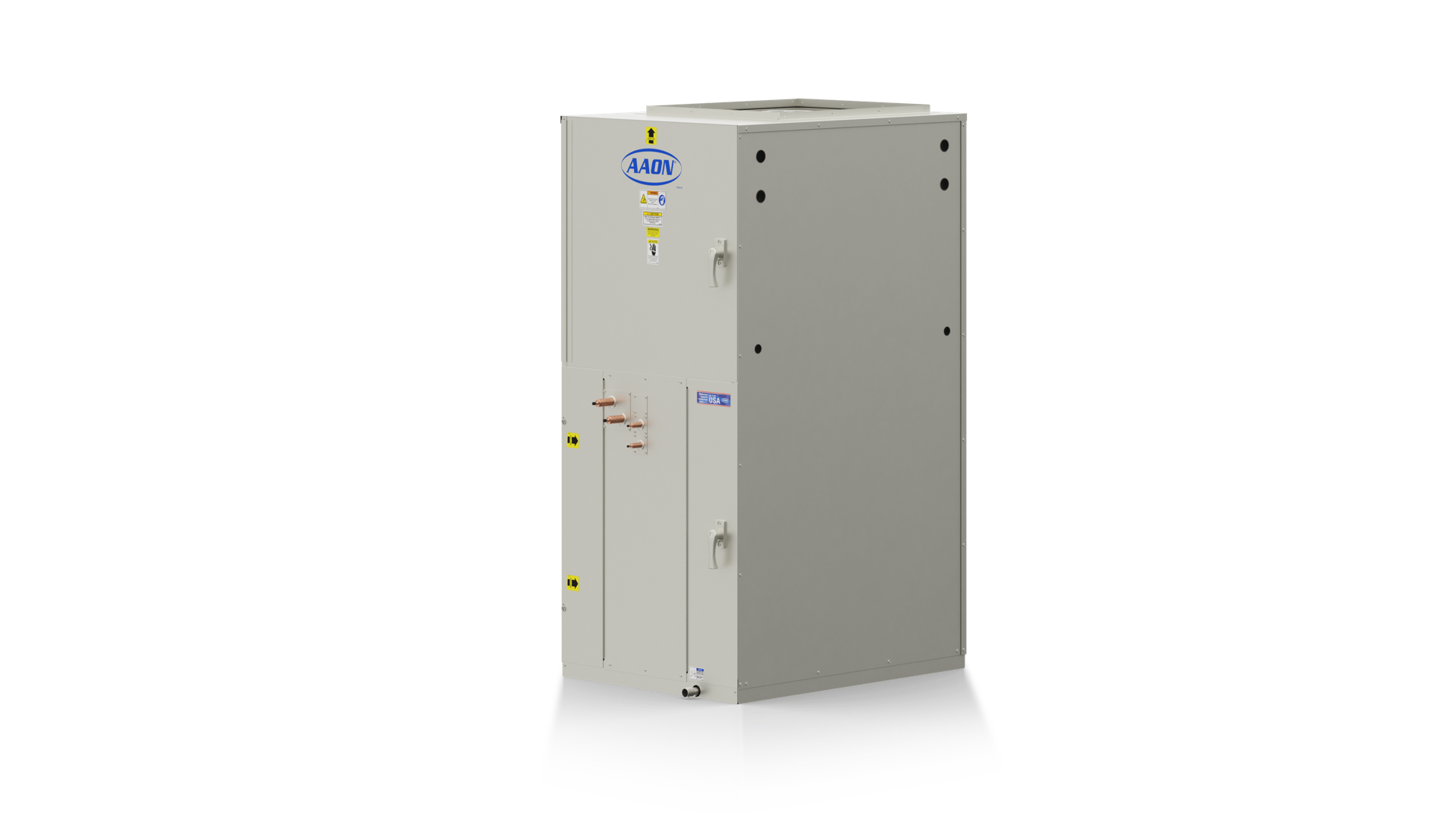

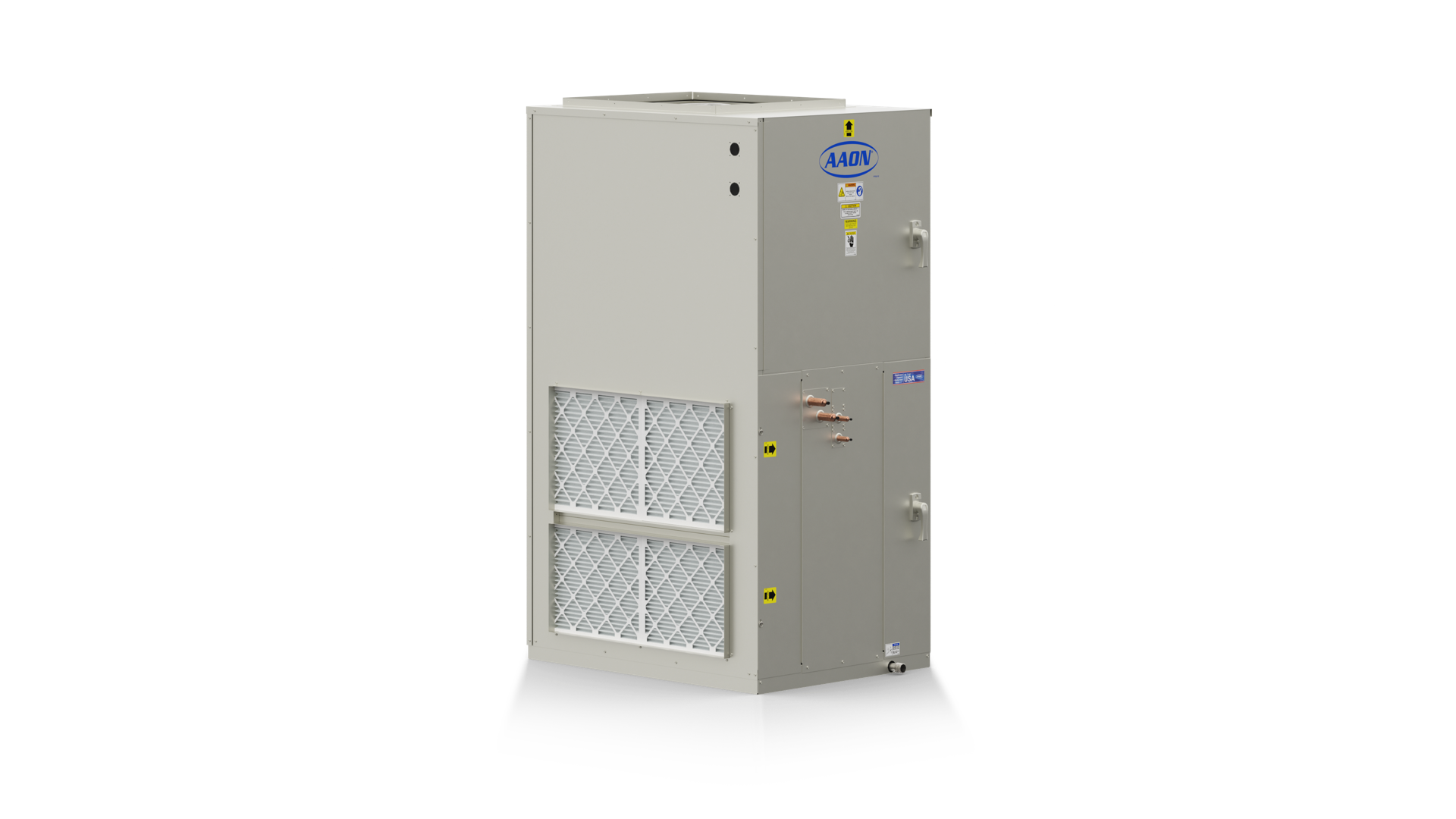

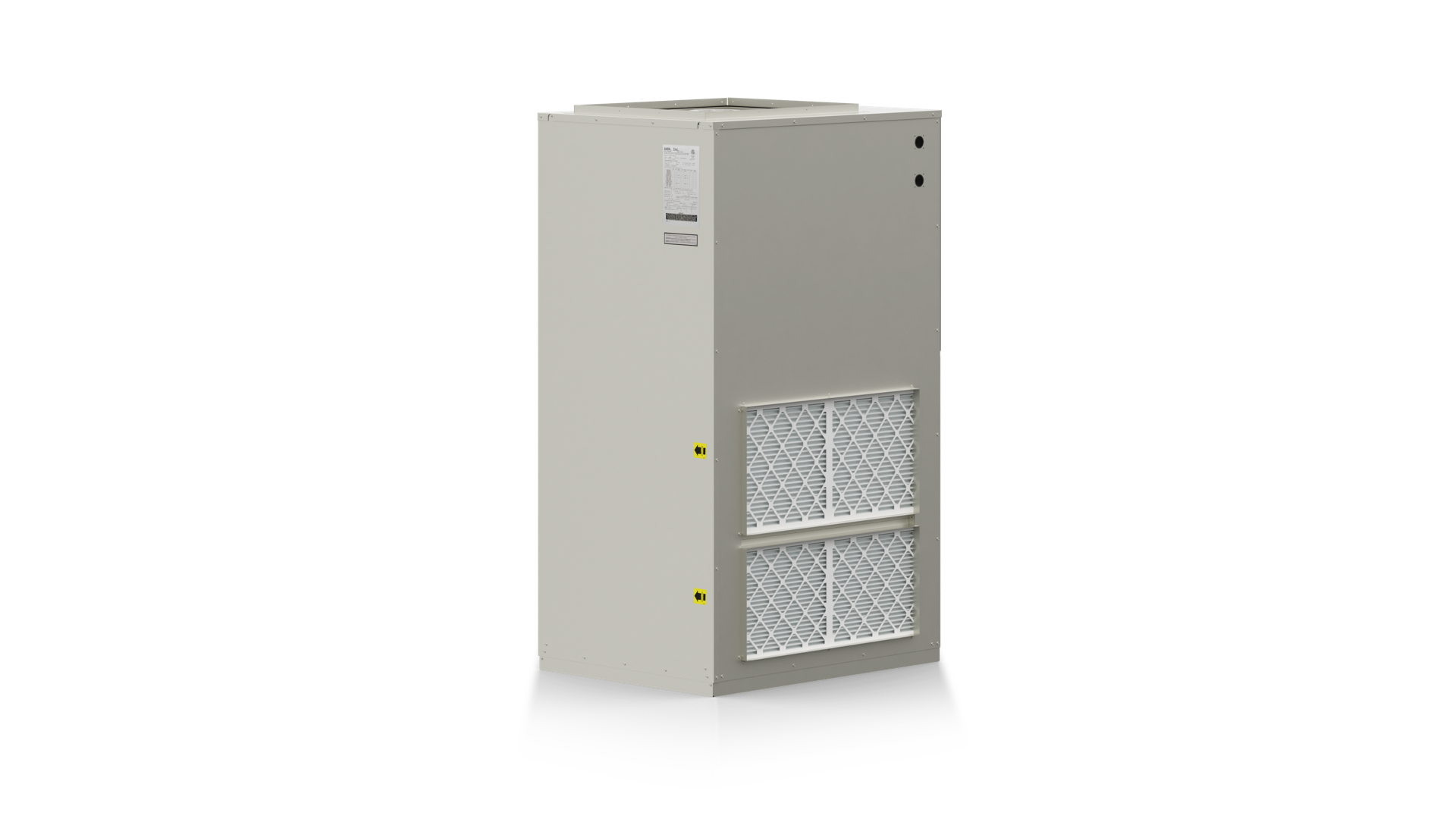

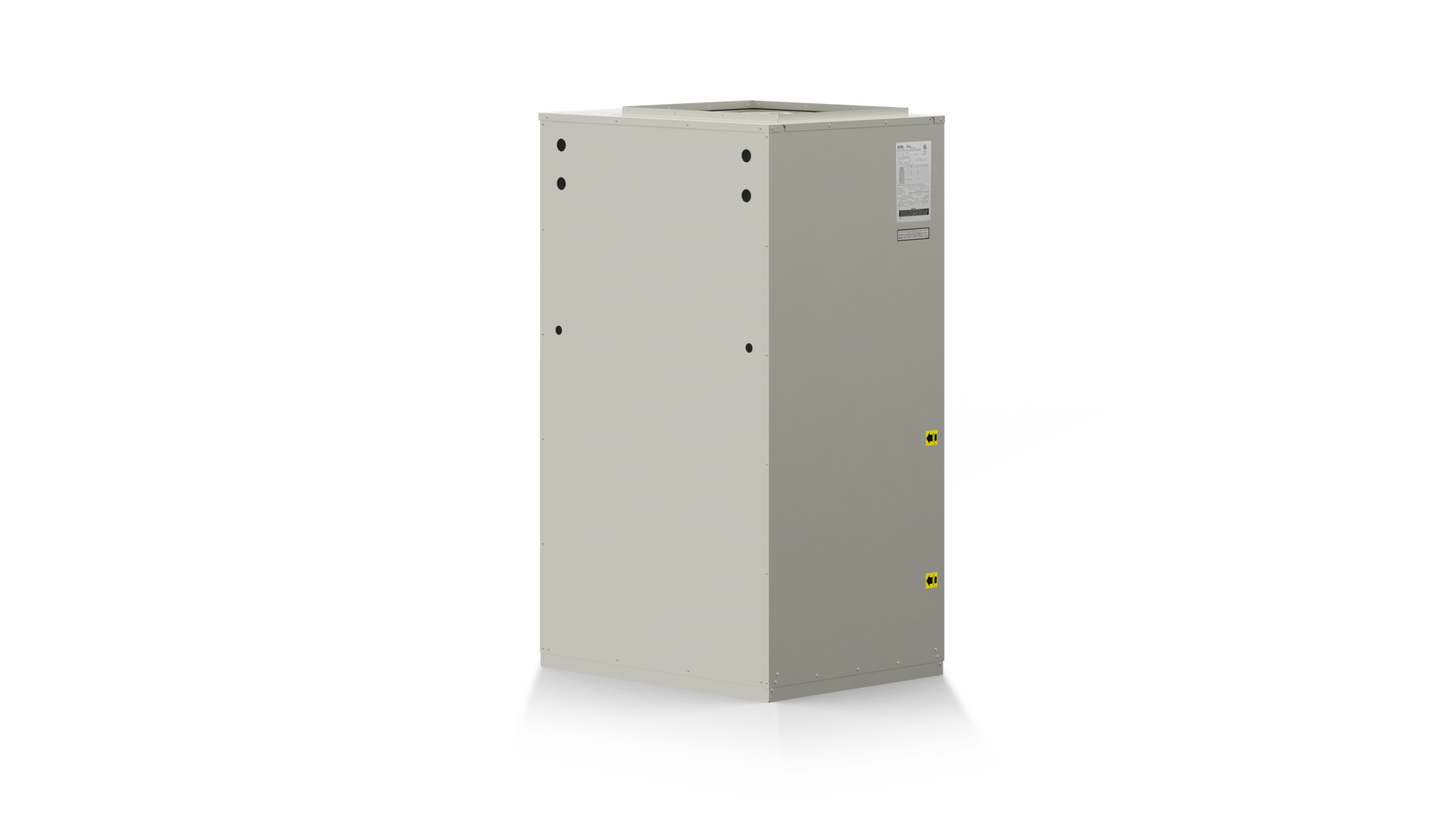

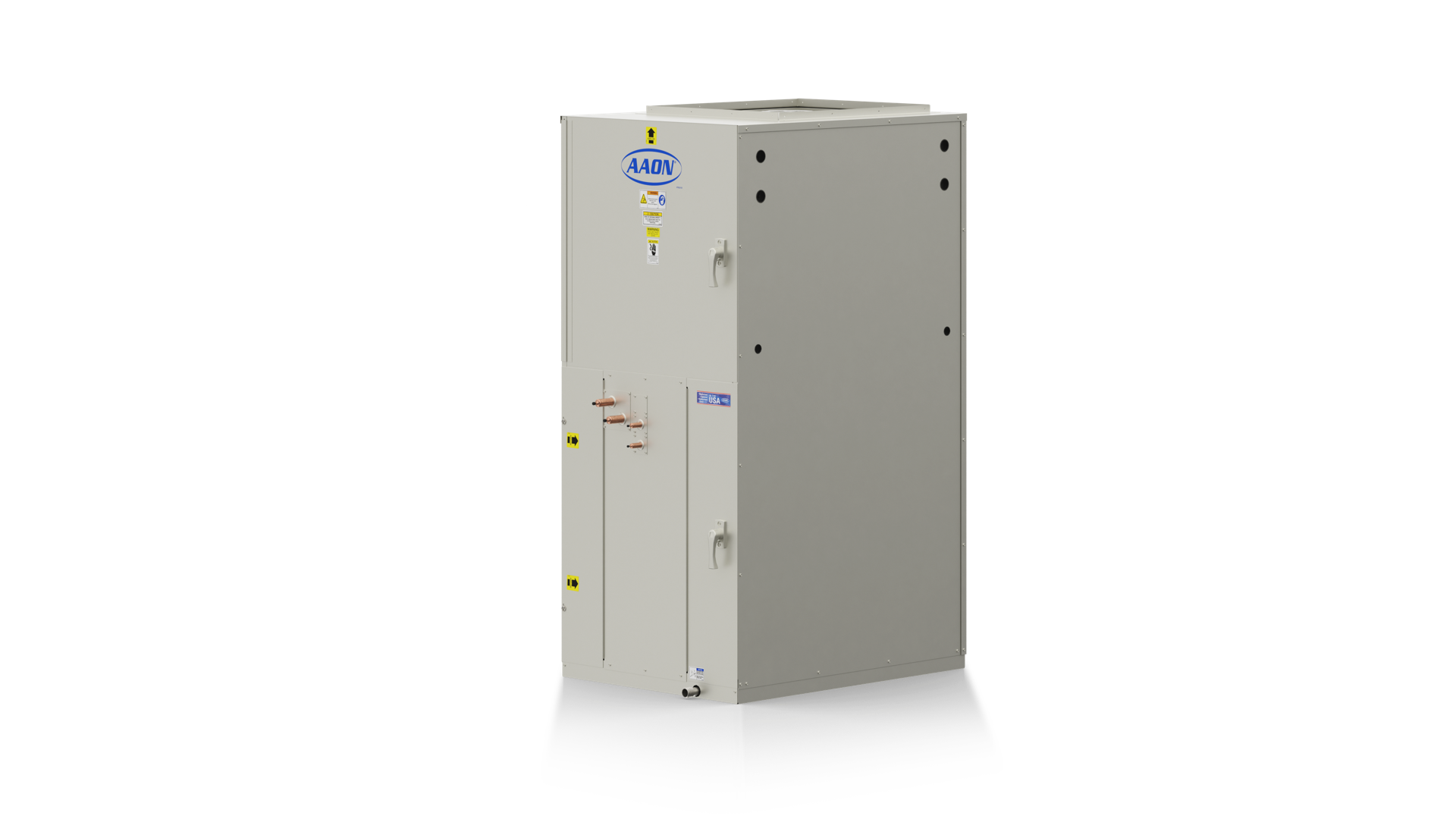

AAON V3 Series vertical indoor air handling units are designed and engineered for a wide variety of heating, cooling, dehumidification, and ventilation applications. Double wall rigid polyurethane foam injected cabinet construction and variable speed direct drive backward curved plenum fans provide the V3 Series with quiet, energy-efficient performance.

Capacity:

450-10,000 cfm

  • Documentation
  • Performance & Quality
  • Features & Options
  • Applications
  • Knowledge Base
Performance & Quality

Performance



When matched with AAON condensing units, AAON split systems provide consistent comfort with low energy consumption. Double wall foam insulated construction and direct drive backward curved plenum fans set a high standard of performance.



Quality

  • The V3 Series is available in 5 different vertical sizes which are designed for small closets or mechanical rooms with narrow clearances. The compact design is ideal for retrofit applications with each cabinet size being able to fit through a standard 36in wide door
  • Double wall rigid polyurethane foam injected panel cabinet construction has a higher thermal resistance, or R-value, versus fiberglass construction. Panels include a thermal break, with no metal contact from inside to outside, to prevent heat transfer through the panel and prevent condensation on the outside of the cabinet. Construction also makes the cabinet more rigid and resistance to damage, provides increased sound dampening, and reduces air leakage and infiltration
  • Right or left handed piping connections and service access doors to fit the needs of the space
  • Double sloped stainless steel drain pans eliminate standing water which can support microbial growth and stainless steel construction resists corrosion that could lead to water leaks and contaminants in the air stream.

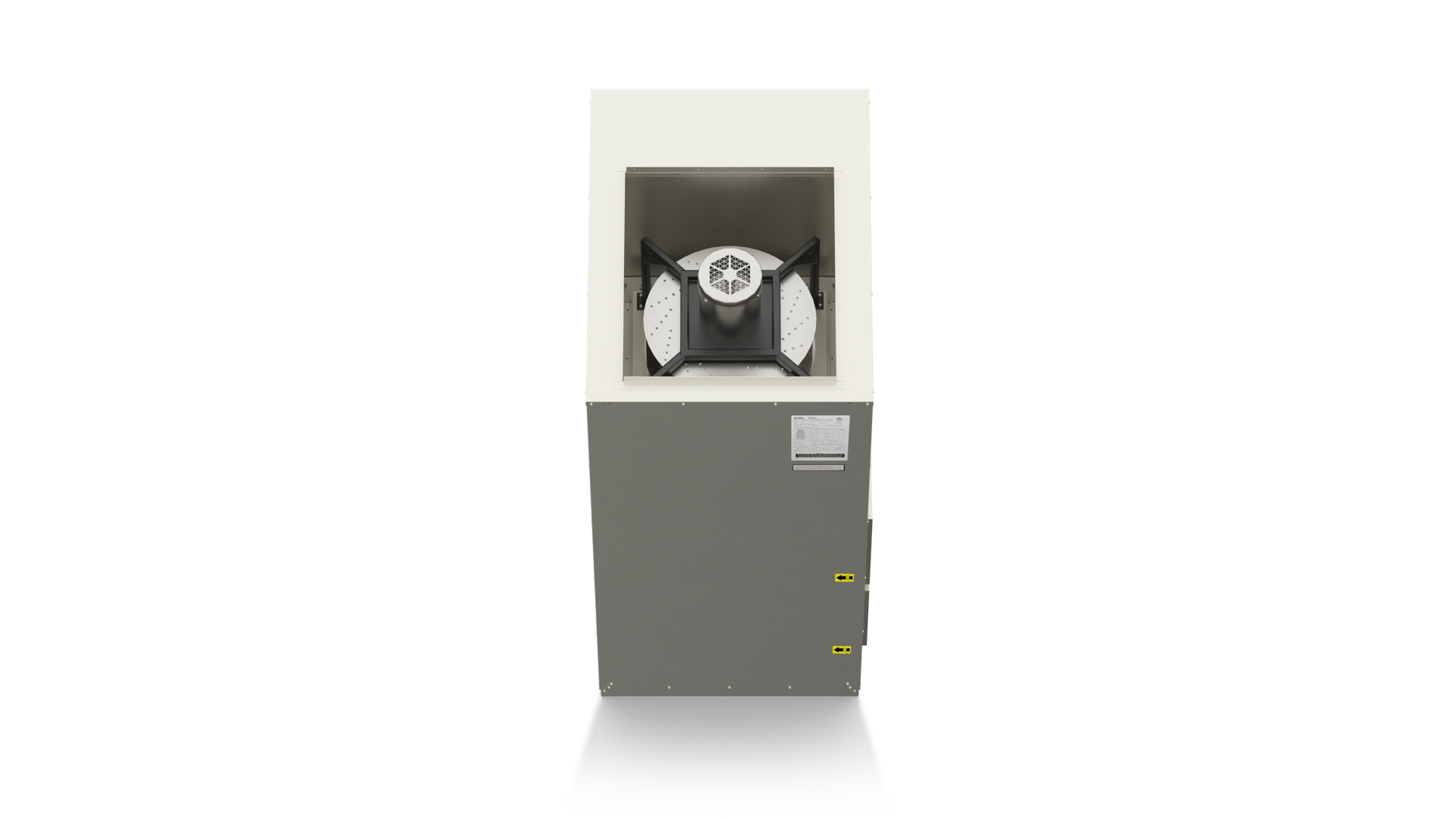

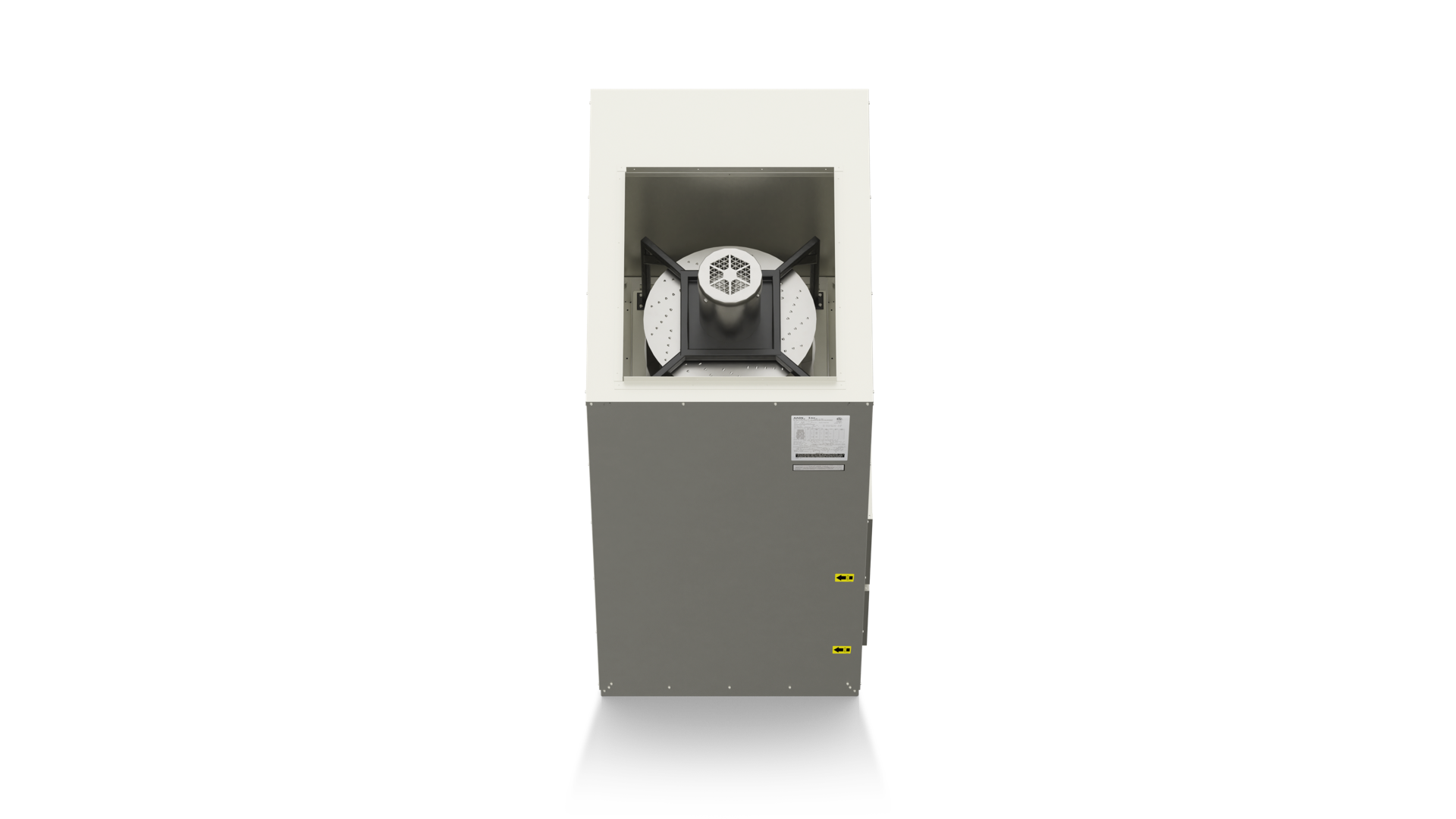

  • Access into fan, filter, and coil sections is quick and easy through double wall rigid polyurethane foam doors. The fan doors have chrome plated steel hinges and quarter turn, lockable handles for effortless entry and removable hinge pins for access in compact spaces



Sustainable long lasting design with available corrosion resistant exterior paint to protect the cabinet and standard corrosion resistant stainless steel drain pans.

Features & Options

Features

  • VFD controlled direct drive backward curved plenum supply fans are available to provide precise airflow control and reduced power consumption
  • Permanent magnet motor technology with an International Efficiency rating above IE5
  • Direct drive backward curved plenum fans are more energy efficient, quieter, and require less maintenance than belt driven and forward curved fans
  • Labeled electrical components and color-coded wiring match the unit specific color-coded wiring diagram which is laminated and permanently affixed inside the controls compartment
  • Factory provided or customer provided controller can be selected to meet existing or new building control architecture
  • Unit controls are contained within a compartment isolated from the air stream with LED service lights for ease of service
  • Factory run test report, wiring diagram, and Installation, Operation, and Maintenance manual with startup form are provided in the control compartment of every unit
  • Natatorium and Pool Room Units; AAONDry units are essential in creating a comfortable indoor pool environment, by precisely controlling temperature and humidity, while minimizing operating costs
  • Split system modulating humidity control provides energy-efficient dehumidification, even with low sensible heat loads, without the temperature swings common with on/off reheat systems
  • Multiple high-efficiency filtration options, with up to a MERV 14 efficiency rating

Options

  • Factory-installed total or sensible AAONAIRE energy recovery wheels save heating and cooling dollars by pre-cooling or pre-heating, and dehumidifying or humidifying (depending on ambient conditions) the ventilation outside air. Up to 80% of the exhaust air energy can be recovered by the wheel
  • Factory-installed thermal expansion valve on DX units reduces start up time
  • Factory-installed mixing boxes for application flexibility. Mixing boxes can include on/off dampers, modulating dampers, or fixed position dampers on the outside and return air streams and can be factory wired to allow for economizer operation
  • SCR (Silicon Controlled Rectifier) electric heat control for reduced power consumption, longer heater life, and improved occupant comfort
  • Polymer e-coated coils or copper fins with stainless steel casings are available to extend the life of the coils and protect them in corrosive environments
Applications
  • Vertical air handling unit with chilled water or direct expansion (DX) cooling coils from 450 to 10,000 cfm
  • Split system heat pump with air-source, water-source, and geothermal configurations allow for energy-efficient cooling and heating
  • Make up air capability, up to 100% outside air, to meet ventilation requirements
  • VAV and single zone VAV capability to minimize system operating costs
  • Factory-installed high-performance hot water, steam, gas, and electric heating
