The Next Generation

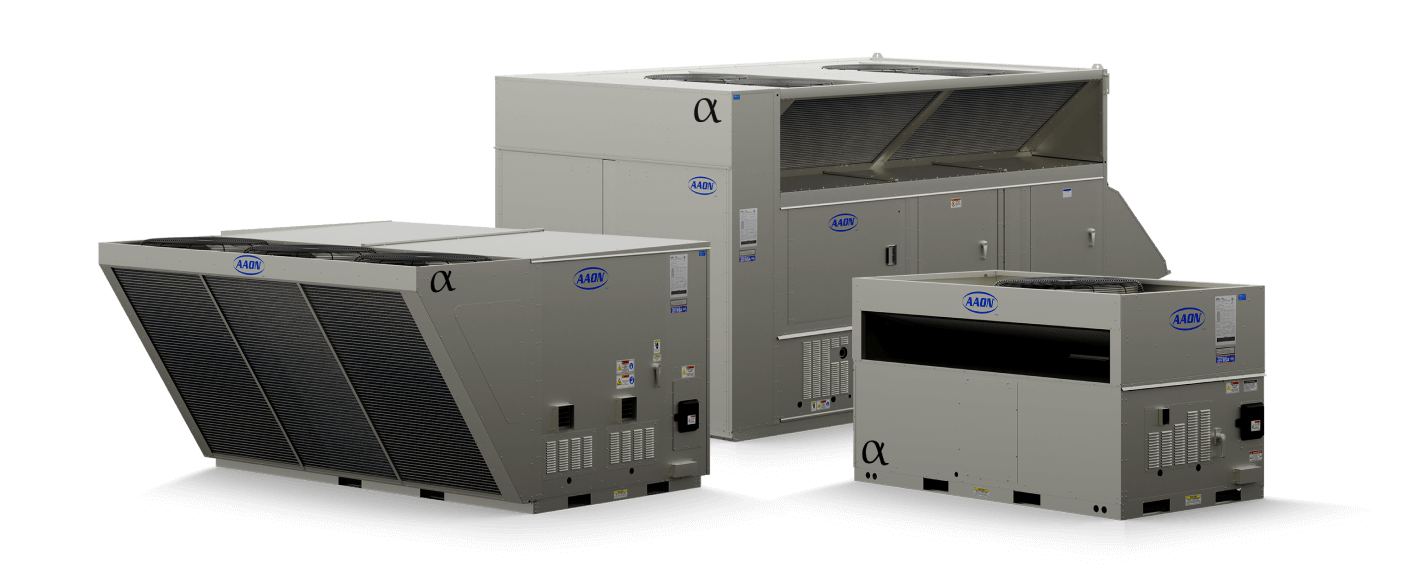

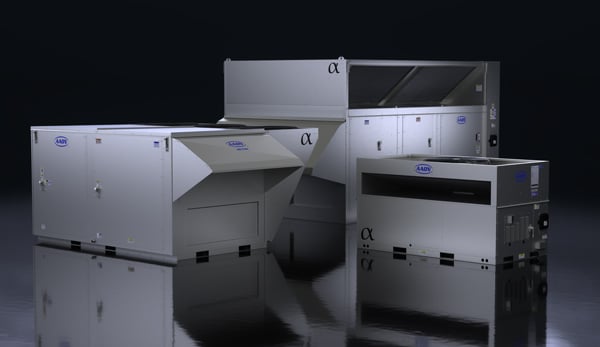

We're continuing our mission to provide cutting-edge technology with unmatched value by introducing three tiers of Alpha Class—ECO SERIES, PRO SERIES, and EXTREME SERIES.
Eco Series
Operable to 10ºF
100% Capacity at 47ºF
PRO Series
Low-Ambient: Operable to 0ºF
100% Capacity at 47ºF
Extreme Series
Ultra Low-Ambient:
Operable to -20ºF
100% Capacity at 5ºF

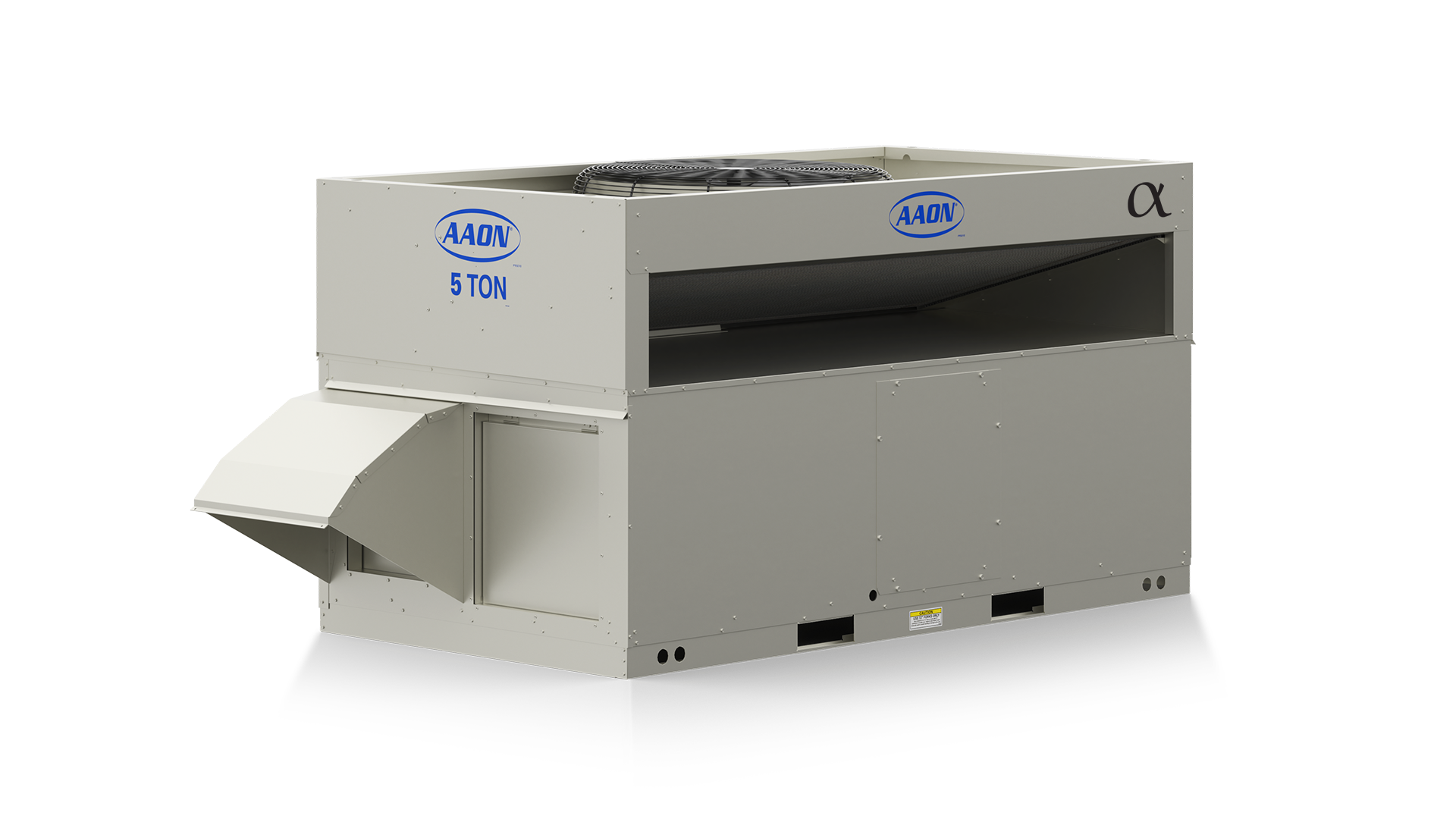

ECO SERIES and PRO SERIES represent different configurations of Alpha Class you already know and love.
EXTREME SERIES is a completely new tier of performance and is the most innovative and state-of-the-art commercial rooftop unit ever created.
With EXTREME SERIES, we've re-engineered the refrigeration system to deliver unmatched Ultra Low Ambient performance, even in harsh conditions. By rethinking compressor operation, we've increased efficiency and expanded the system's capabilities.
Award-winning design, certified technology.
For a better tomorrow.
First-in-class low ambient heating capability.

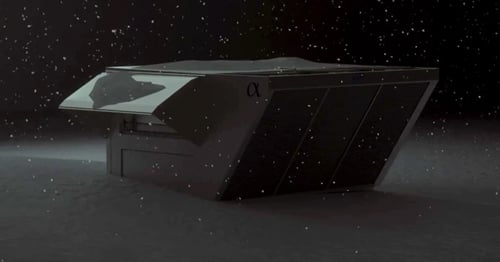

Rigorously tested and proven to perform in ultra low-ambient climates, down to -20 degrees Fahrenheit.
Engineered for higher efficiency and lower emissions.
- World-renowned cabinet construction, featuring double-walled polyurethane foam injected panels
- Efficiency-boosting configurations that reduce carbon footprint
- Proven performance in a wide range of environments
Offering the innovation our future demands — today.
- Refrigerant injection technology
- All-electric or dual fuel (DF/S)
- Dedicated outdoor air space (DOAS) capability
- Energy recovery
Our solution to the critical demand for building decarbonization.
Reliable heating in low ambient temperatures

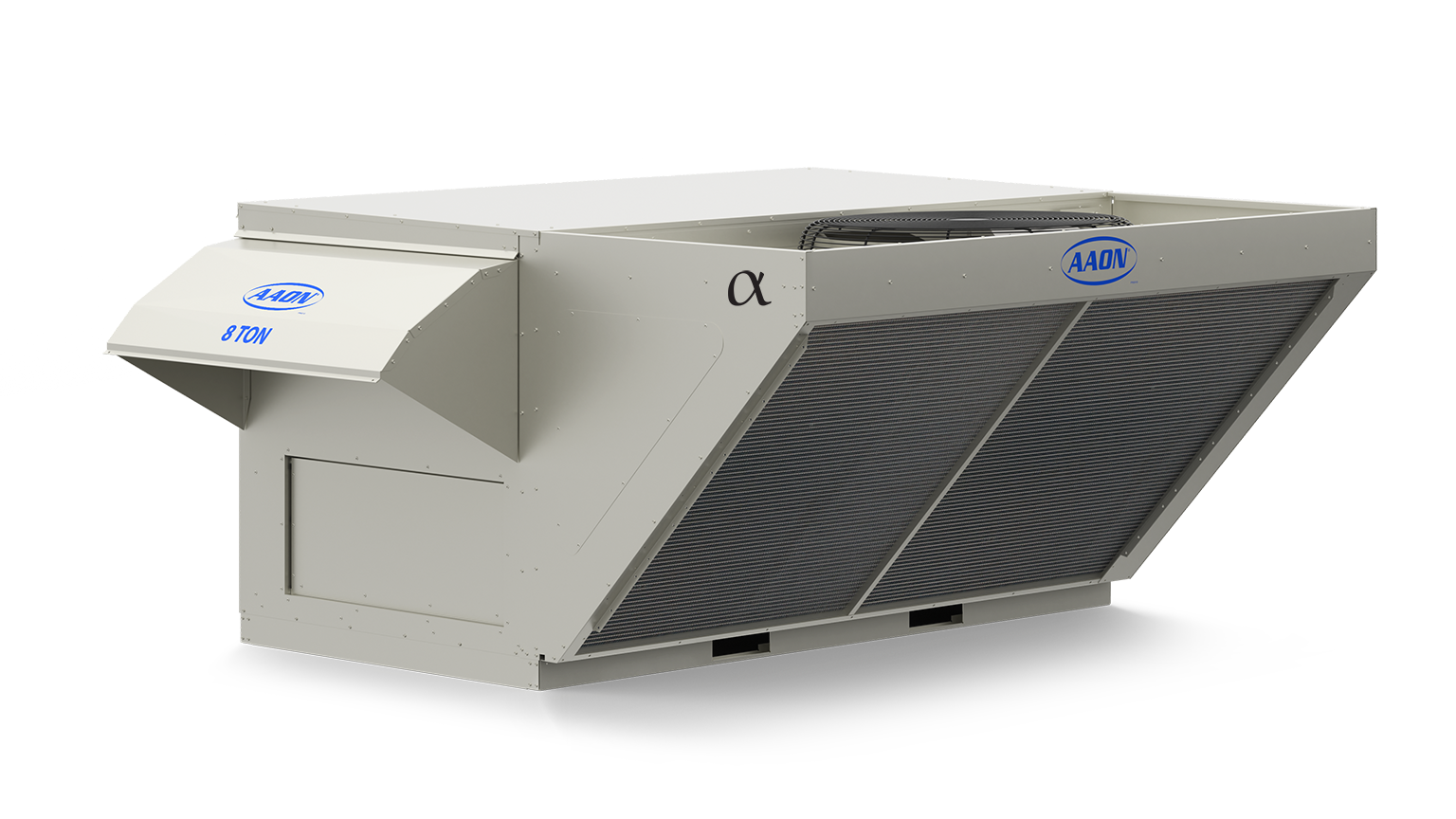

AAON Alpha Class air-source heat pumps are capable of operating reliably at lower ambient temperatures and with high heating capacities over a wide range of operating conditions. AAON Alpha Class heat pumps perform well in climates where other solutions cannot.
High-efficiency electrified heating & cooling
AAON Alpha Class air-source heat pumps have AHRI-certified heating COPs of up to 4.06 and cooling IEER values up to 22.8, saving energy costs year-round.
Precise comfort control without burning fossil fuels
Variable speed compressor heat pump heating combined with an auxiliary modulating electric heater allows comfortable heating control, even in extreme temperatures without the use of fossil fuels.
AAONAIRE® energy recovery
The addition of AAONAIRE energy recovery wheels significantly increases the efficiency of AAON Alpha Class units to maximize energy savings. Selecting this feature increases the COP of the system significantly and also provides more effective performance by preconditioning the outside air.
Renowned cabinet design and construction
Standard two-inch rigid polyurethane foam-injected panels have a thermal resistance R-value of 16 or greater, exceeding that of a cabinet with four-inch fiberglass construction. This retains useful heating to the building instead of wasting it through the cabinet.
Wide range of available capacities
AAON Alpha Class air-source heat pumps are available from 2-70 tons.
Dual Fuel
In addition to the 100% electric configuration, AAON provides the option to select a supplemental gas heater to provide heat in situations that require it. The gas heat is used simultaneously with electric heat, only in extremely low ambient temperatures, greatly reducing overall fossil fuel usage while providing comfort in all conditions.
Economizer Option
Up to 100% airflow economizer dampers provide energy-saving, free conditioning when conditions meet setpoint values. This feature also provides ventilation air under all conditions to meet indoor air quality requirements with fresh outside air.
Variable speed fans
Variable speed supply fans and variable speed outdoor fans provide high performance heat pump heating and cooling airflow. Variable speed control allows for energy savings at reduced airflow.
Variable speed compressors
These operate with the highest part load efficiencies over any other compressor technology and provide precise temperature and humidity control. Specific controls protect the compressor by ensuring it operates within the safety of the compressor operating envelope.
Modulating hot gas reheat capacities
Modulating hot gas reheat humidity control is available to provide energy efficiency dehumidification, even with low sensible heat loads, without the temperature swings common with on/off reheat systems.
