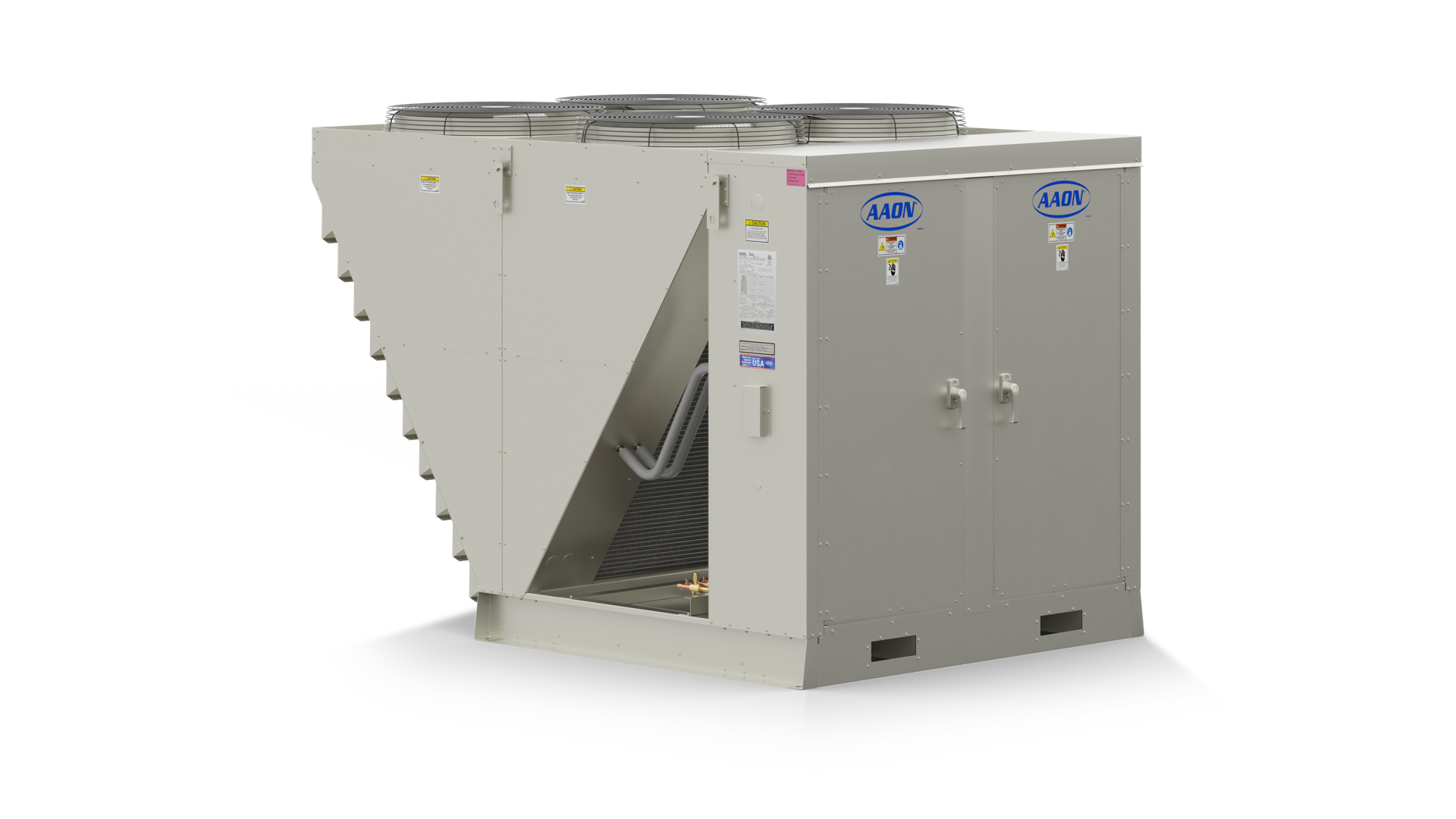

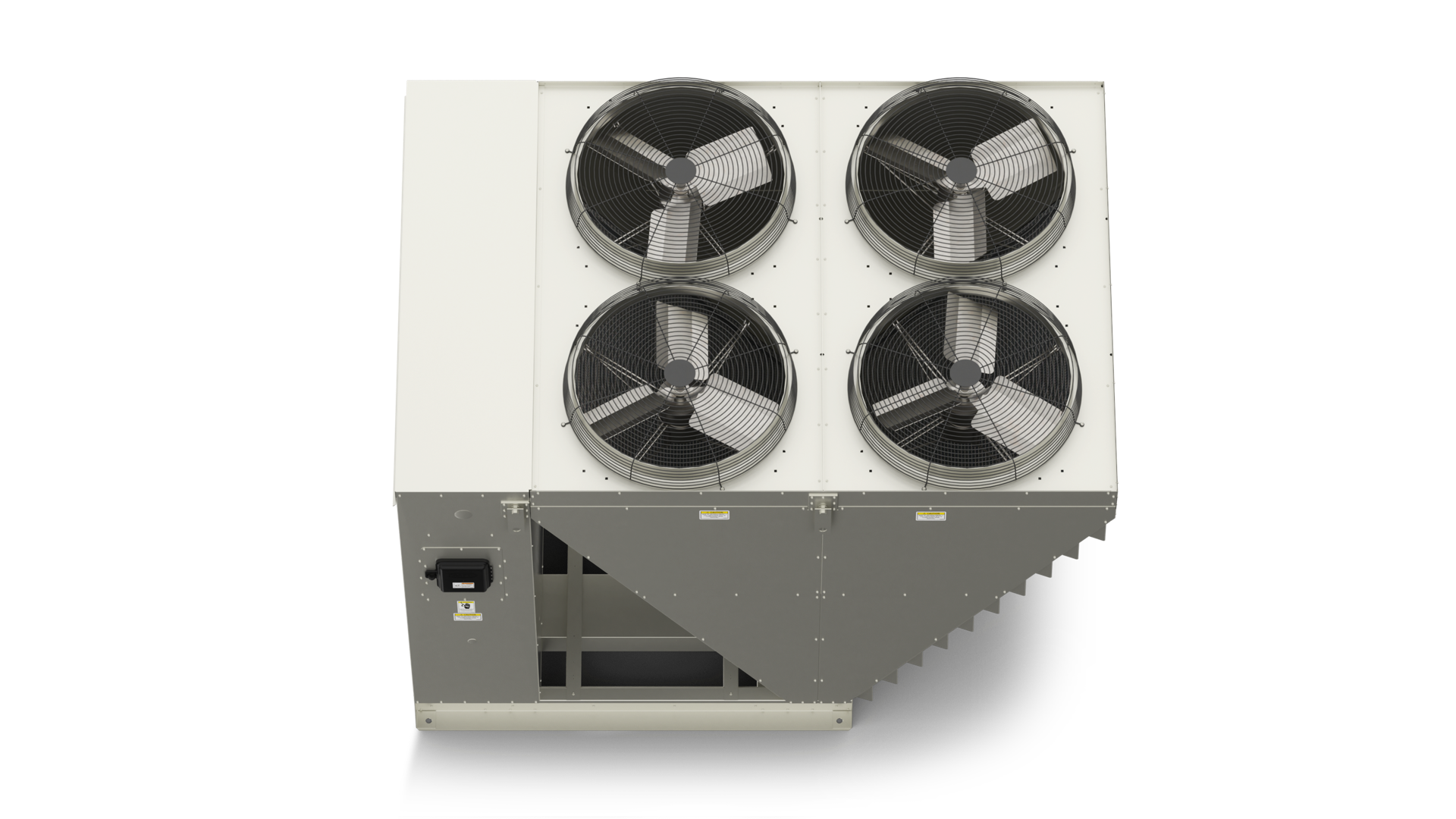

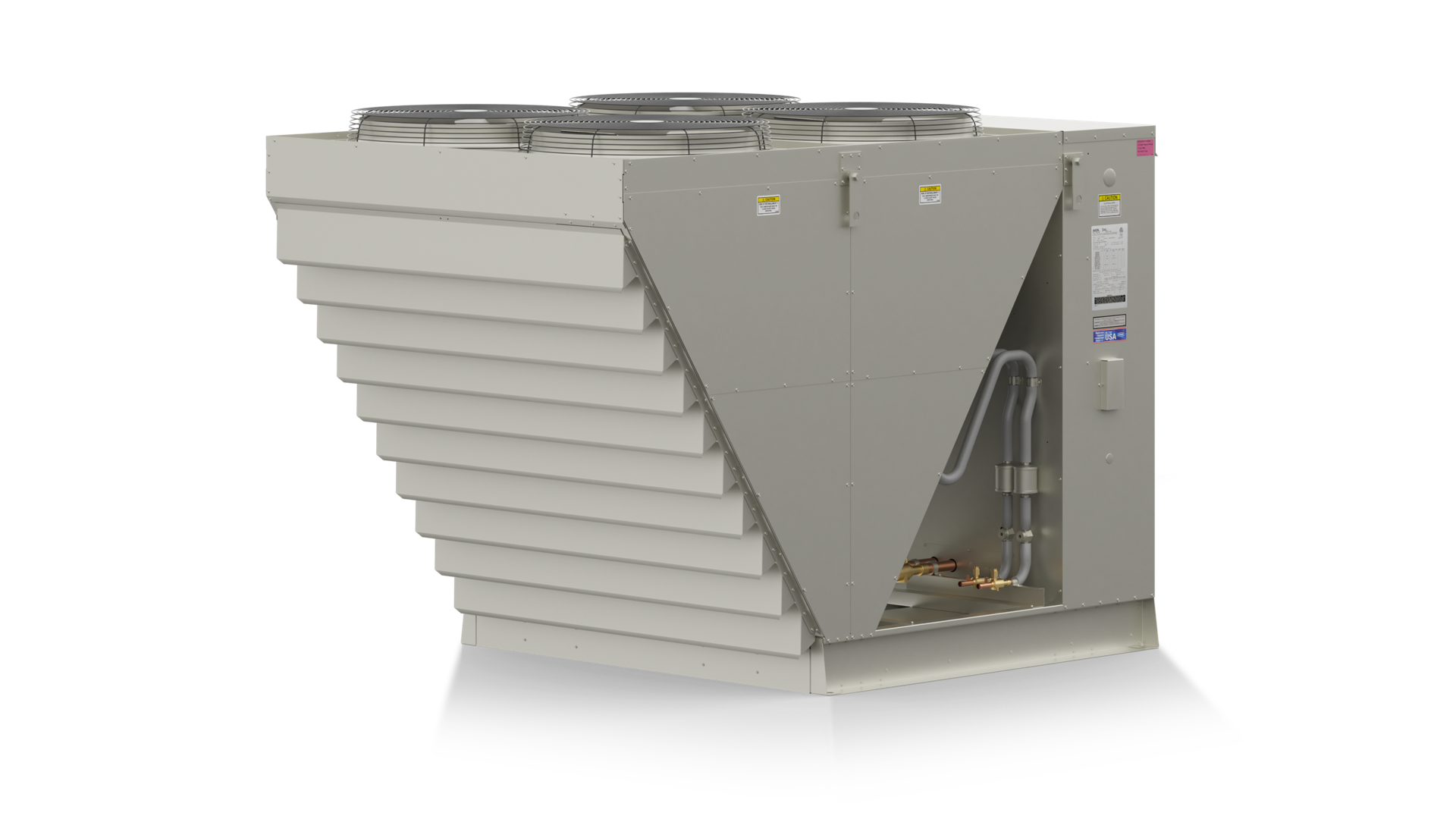

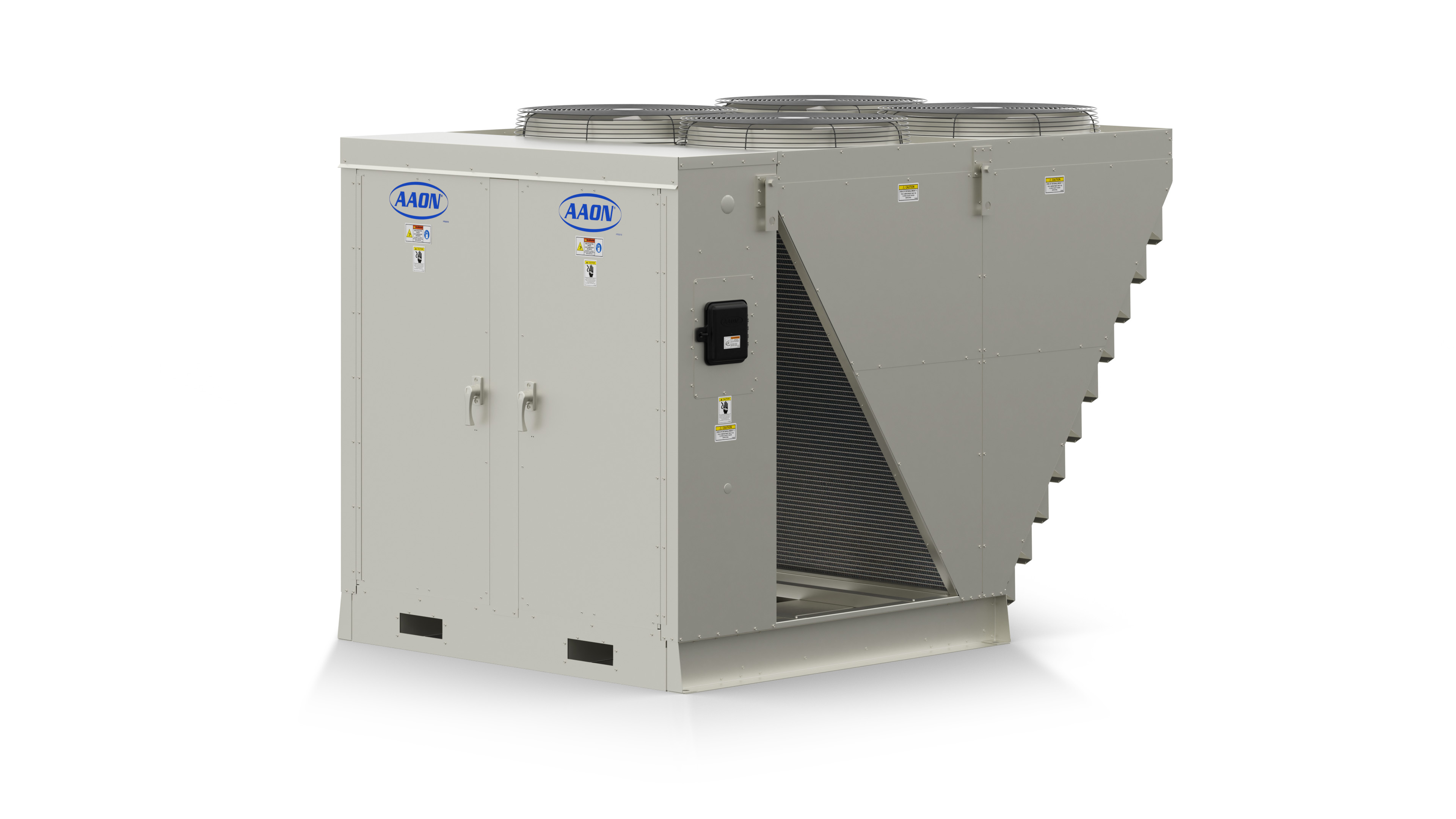

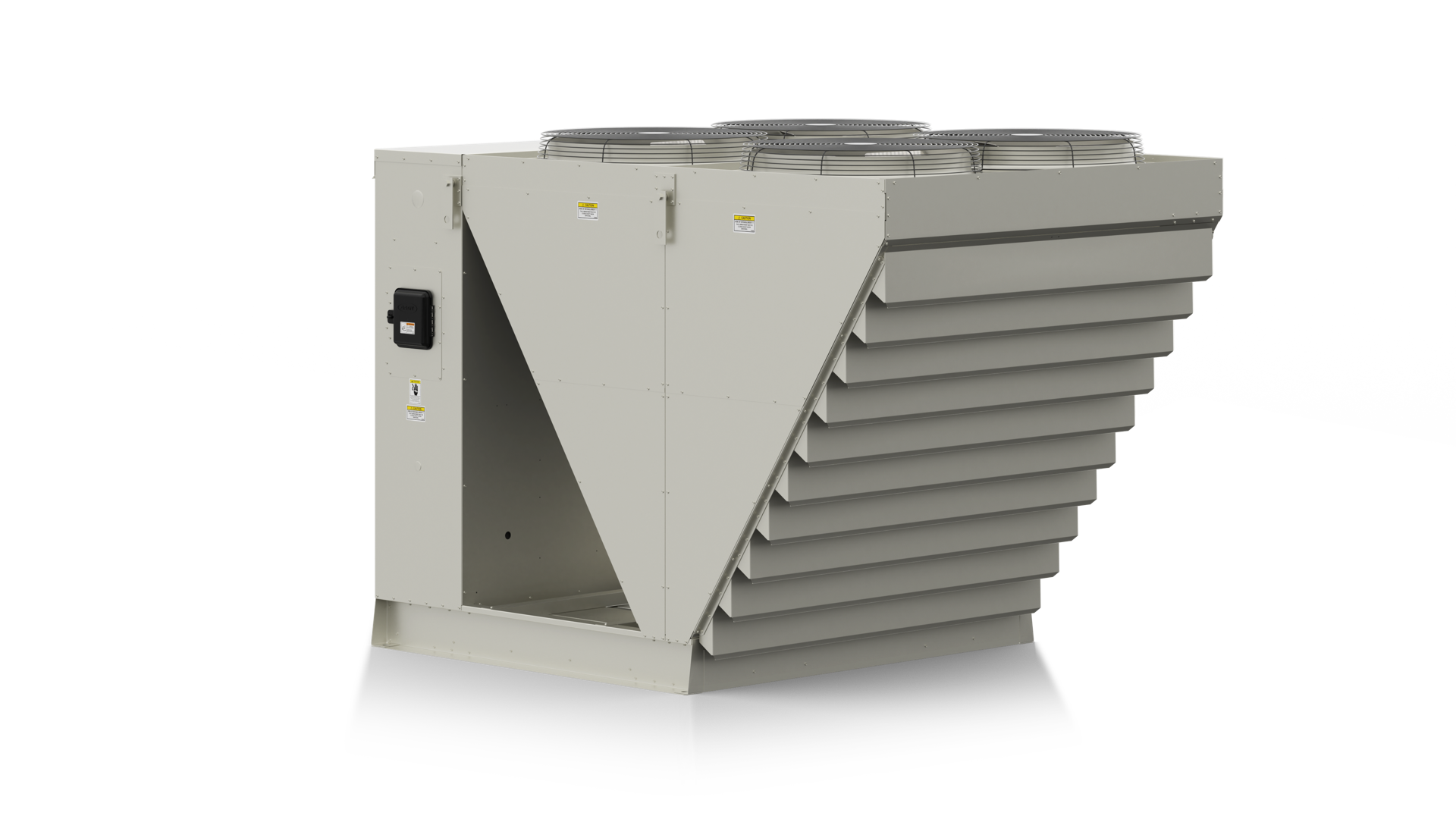

CF Series
AAON CF Series Condensers and Condensing Units boast the same benefits that customers have come to expect from other AAON products: serviceability, quiet operation, reliability, premium efficiency, world-class construction, and a number of premier options that provide the flexibility to suit any application.
CF Series units are designed to reflect the proven reliability and engineering excellence that can only come from the premier manufacturer of heating and cooling products.
Capacity:
2-70 TONS
- Documentation
- Performance & Quality
- Features & Options
- Applications
- Knowledge Base
Documentation
Performance & Quality
Performance
Air-source heat pump configurations for energy efficient heating and when paired with AAON air handling units create a complete dual fuel split system with hot water, steam, electric, or gas heating.
Quality
- Compressors are factory installed with rubber isolation mounts on structural decks in an isolated service compartment for quiet operation
- Corrosion resistant exterior paint that exceeds a 2,500-hour salt spray test
- Each refrigeration circuit includes automatic low pressure and manual reset high pressure safety cutouts, and suction and liquid line Schrader valves
- Compressors and controls are housed in a service compartment
- Access doors with full length stainless steel piano hinges and lockable handles provide superior access and serviceability for the isolated compressor and controls compartment
- Sustainable design backed by optional five year compressor warranty
- Cabinet is constructed of painted heavy gauge galvanized steel that surpasses a 2,500 hour salt spray test to provide the unit with corrosion protection
Features & Options
Features
- ECM (Electronically Commutated Motor) driven or VFD (Variable Frequency Drive) controlled condenser fans for head pressure control and complete capacity modulation
- Labeled split system copper stub outs with shutoff valves for easy installation without the need to cut holes in the cabinet
- Factory run test report, color-coded wiring diagram, and Installation, Operation, and Maintenance manual with startup form are included in the controls compartment
- Compressors and controls are housed in a service compartment, for easy maintenance
- Flooded condenser low ambient control allows cooling at temperatures down to 0°F
- Variable capacity compressors are available on the lead circuit or all circuits to match the application requirements
- Modulating hot gas reheat is available to provide energy efficient dehumidification, even with low sensible heat loads, without the temperature swings common with on/off reheat systems.
Options
- Polymer e-coated condenser coils are available to extend the life of the coils and protect them in corrosive environments
- Available for split system air source heat pumps when paired with an AAON air handling unit, creating a complete dual fuel split system with hot water, steam, electric, or gas heating
- High density foam compressor sound suppression blanket reduces radiated compressor sound
Applications
- Air-cooled condensing unit or a remote air-cooled condenser, from 2-70 tons
- Available for split systems, can be paired with AAON H3 Series, V3 Series, M2 Series, RQ Series, and RN series air handling units, ensuring easy installation with factory supplied split system refrigerant line piping and wiring diagrams
- Staged, two-step, or 10-100% variable capacity scroll compressors are available for load-matching cooling and heat pump heating
