PREHEAT-X-1
PREHEAT-X-1
ALL PRODUCTS

PREHEAT-X Series

The Orion Controls product line allows the VCCX2 Controller to expand its features and capabilities by utilizing numerous application specific add-on modules. These modules can be used as a stand-alone or as expansion modules communicating with a VCCX2 Controller via a modular cable.

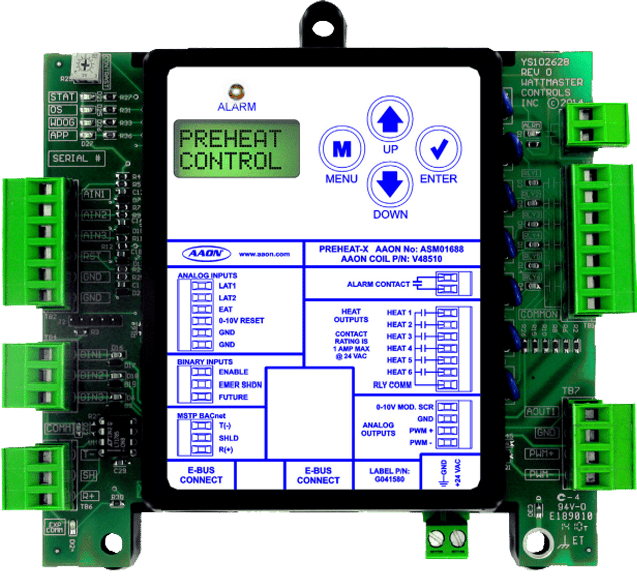

The PREHEAT-X and PREHEAT-X-EXT control fixed stages of Preheat and optional modulating Preheat to maintain a desired Preheat Leaving Air Temperature Setpoint. These can be used as stand-alone modules or in conjunction with the VCM-X E-BUS, VCB-X, or VCCX2 Controller.

SPECIFICATIONS

  • Features
    The PREHEAT-X and PREHEAT-X-EXT have the following features:
    • Can be operated as a stand-alone controller or communicating with the VCCX2, , VCB-X, and VCM-X E-BUS Controllers.
    • Monitors the Preheater Leaving Air Temperature and Leaving Air Reset Signal and controls to maintain the setpoint.
    • Contains a 2 x 8 LCD character display and four buttons that allow for status display and setpoint changes.
    NOTE: The PREHEAT-X-EXT Controller has an extended Leaving Air Temperature Setpoint range down to 0°F and should only be used with the approval of AAON.
  • Options
    PREHEAT-X Modules available:
    • PREHEAT-X
    • PREHEAT-X-EXT
The PREHEAT-X and PREHEAT-X-EXT have the following features:
  • Can be operated as a stand-alone controller or communicating with the VCCX2, , VCB-X, and VCM-X E-BUS Controllers.
  • Monitors the Preheater Leaving Air Temperature and Leaving Air Reset Signal and controls to maintain the setpoint.
  • Contains a 2 x 8 LCD character display and four buttons that allow for status display and setpoint changes.
NOTE: The PREHEAT-X-EXT Controller has an extended Leaving Air Temperature Setpoint range down to 0°F and should only be used with the approval of AAON.
PREHEAT-X Modules available:
  • PREHEAT-X
  • PREHEAT-X-EXT
