MSC-1
MSC-1
ALL PRODUCTS

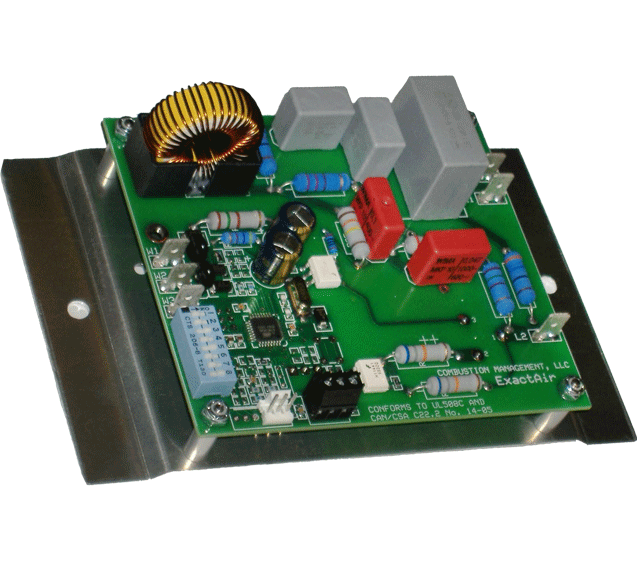

Motor Speed Controller

The Motor Speed Controller is designed to control the speed of alternating current induction motors in combustion air blowers. The Motor Speed Controller is used with blower motors with Hall effect tachometer sensors included to help facilitate blower speed control.

SPECIFICATIONS

  • Features

    There are two Motor Speed Controller options, the 240 V and the 480 V. Both controllers function the same, but are equipped with a different voltage power supply. The Motor Speed Controller controls speed based on the dip switch settings. The controller provides two speed modes, low and high speed. The two modes are controlled by 24 VAC control power inputs.

  • Options
    • Motor Speed Controller - 240V
    • Motor Speed Controller - 480V

There are two Motor Speed Controller options, the 240 V and the 480 V. Both controllers function the same, but are equipped with a different voltage power supply. The Motor Speed Controller controls speed based on the dip switch settings. The controller provides two speed modes, low and high speed. The two modes are controlled by 24 VAC control power inputs.

  • Motor Speed Controller - 240V
  • Motor Speed Controller - 480V
