AAON_CB_Series
AAON_CB_Series
ALL PRODUCTS

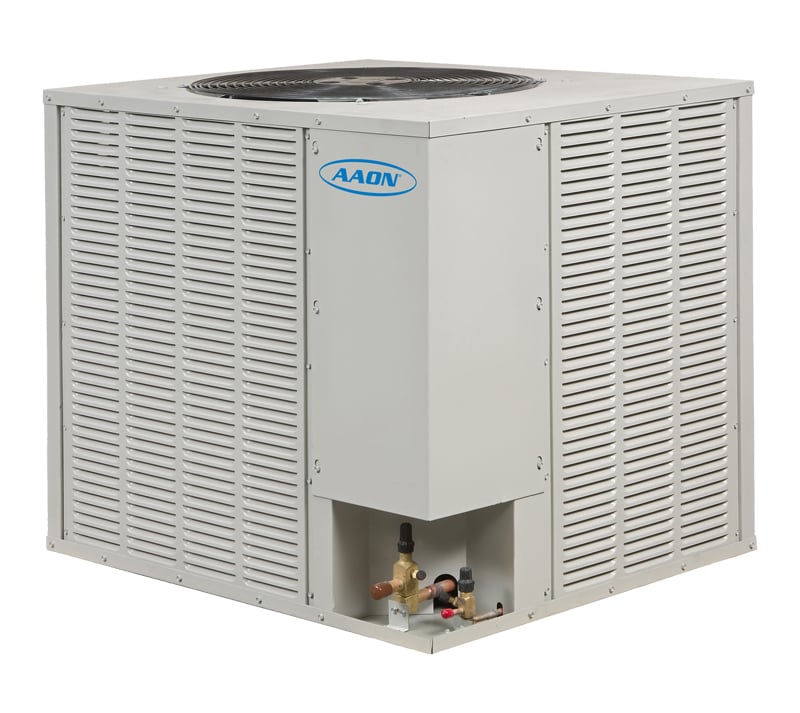

CB Series

The AAON CB Series Condensers & Condensing Units are engineered to be energy efficient, long lasting, and easy to install. Standard features include variable speed ECM driven condenser fans, two step compressors, and a continuous fin condenser coil with louvered coil guard. CB Series Condensing Units can be matched with AAON air handling units.

Capacity:

2-50 TONS

SPECIFICATIONS

  • Applications
    • Air-cooled condensing unit or a remote air-cooled condenser, from 2-5 tons or 24-60 MBH.
    • Available for split system air source heat pump configurations.
    • Two step scroll compressor, 67% and 100% capacity, includes rubber isolation mounts to minimize vibration.
    • Variable capacity scroll compressor (10-100%) for load matching cooling and heating and improved part load efficiency

  • Performance

    Split system modulating humidity control is available to provide energy efficient dehumidification, even with low sensible heat loads, without the temperature swings common with on/off reheat systems.

  • Quality
    • Single, easily removable, panel that provides access to the unit service
      compartments.
    • Heavy duty wire guards or painted louvered panels protect the condenser coil from damage and debris.
  • Standard Features
    • Factory supplied and labeled split system copper stub outs with shut off valves for easy installation without the need to cut holes in the cabinet.
    • Unit specific color-coded point-to-point wiring diagrams are provided and are laminated and permanently affixed inside the control compartment.
    • Forklift slots in the base provide easy handling at the job site
  • Options
    • Modulating hot gas reheat is available to provide precise dehumidification, even with low sensible  heat loads, without the temperature swings common with/off reheat systems.
    • Low ambient fan cycling or modulating heat pressure control options (ECM driven or VFD controlled condenser fans) available to allowing cooling operation down to 35°F ambient.
  • Sustainability
    • Optional 5 year compressor warranty
    • Polymer e-coated coils are available to extend the life of the coils and protect them in corrosive environments.
    • Cabinet is constructed of painted heavy gauge galvanized steel that surpasses a 2,500 hour salt spray test to provide the unit with corrosion protection.

  • Health/IAQ
    • Wrap-around, single row, high efficiency condenser coil with no additional rows to trap dirt and debris. A single row wrap-around coil is easier to clean than a multi-row wrap-around coil.
    • Modulating hot gas reheat is available to provide precise dehumidification, even with low sensible heat loads, without the temperature swings common with on/off reheat systems.
  • Air-cooled condensing unit or a remote air-cooled condenser, from 2-5 tons or 24-60 MBH.
  • Available for split system air source heat pump configurations.
  • Two step scroll compressor, 67% and 100% capacity, includes rubber isolation mounts to minimize vibration.
  • Variable capacity scroll compressor (10-100%) for load matching cooling and heating and improved part load efficiency

Split system modulating humidity control is available to provide energy efficient dehumidification, even with low sensible heat loads, without the temperature swings common with on/off reheat systems.

  • Single, easily removable, panel that provides access to the unit service
    compartments.
  • Heavy duty wire guards or painted louvered panels protect the condenser coil from damage and debris.
  • Factory supplied and labeled split system copper stub outs with shut off valves for easy installation without the need to cut holes in the cabinet.
  • Unit specific color-coded point-to-point wiring diagrams are provided and are laminated and permanently affixed inside the control compartment.
  • Forklift slots in the base provide easy handling at the job site
  • Modulating hot gas reheat is available to provide precise dehumidification, even with low sensible  heat loads, without the temperature swings common with/off reheat systems.
  • Low ambient fan cycling or modulating heat pressure control options (ECM driven or VFD controlled condenser fans) available to allowing cooling operation down to 35°F ambient.
  • Optional 5 year compressor warranty
  • Polymer e-coated coils are available to extend the life of the coils and protect them in corrosive environments.
  • Cabinet is constructed of painted heavy gauge galvanized steel that surpasses a 2,500 hour salt spray test to provide the unit with corrosion protection.

  • Wrap-around, single row, high efficiency condenser coil with no additional rows to trap dirt and debris. A single row wrap-around coil is easier to clean than a multi-row wrap-around coil.
  • Modulating hot gas reheat is available to provide precise dehumidification, even with low sensible heat loads, without the temperature swings common with on/off reheat systems.
