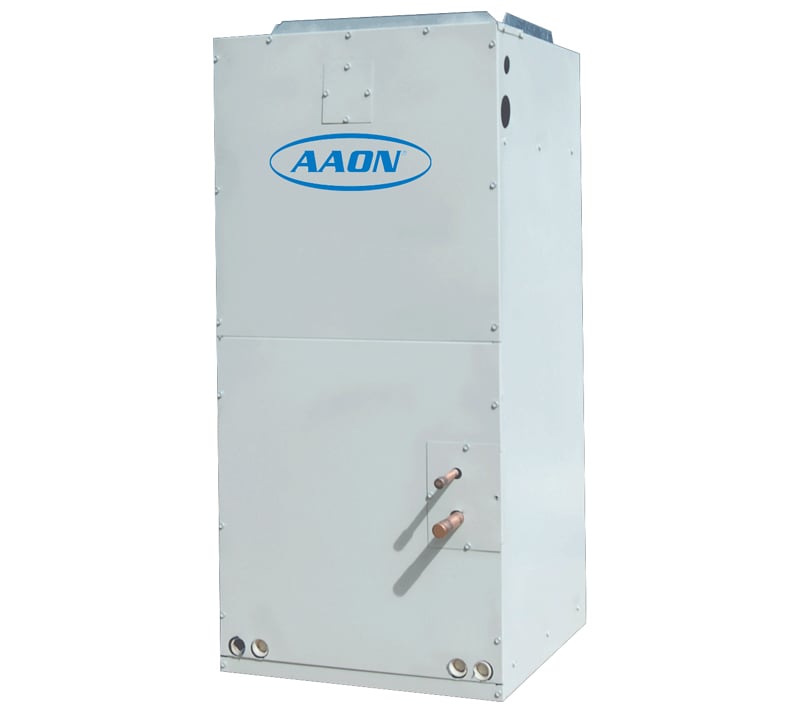

F1 Series

AAON F1 Series Indoor Air Handling Units are available in vertical and multi-position configurations and can be used for residential or light commercial applications.

Galvanized steel construction with foil faced insulation, high efficiency direct drive ECM driven supply fan and optional heat pump configuration allow the F1 Series to have quiet, energy efficient performance.

Capacity:

2-5 TONS

SPECIFICATIONS

  • Applications
    • Air handling unit with direct expansion coils from 800 - 2,000 cfm
    • Heating from hot water coils, electric elements and heat pump operation
    • Split system heat pump with air-source, water-source, and geothermal configurations allow for energy efficient cooling and heating
  • Quality
    • The F1 Series indoor air handling unit is designed for multi-position applications. The unit may be positioned with a vertical (upflow) or horizontal orientation as required by the installation
    • Rigid galvanized construction and foil faced insulation provide a sturdy and dependable air handling unit that promotes indoor air quality
    • The sloped corrosion resistant drain pan eliminates standing water that can support microbial growth. The drain pan will not corrode and contaminate the air stream. The drain pan connections are positioned in multiple locations for installation flexibility.
  • Standard Features
    • Blowers are individually selected to match external static, sound, efficiency, and space design criteria
    • Variable speed fans are included to create a high efficiency system that reduces initial and operating expenses
    • Unit wiring is completely factory provided with color-coded wires
    • Units are provided with specific unit color-coded wiring diagrams that are laminated and permanently affixed inside control compartment access door
    • Factory run test and inspection reports are included with the unit
  • Options
    • Units are available with thermal expansion valves to simplify installation and improve reliability
    • The F1 Series air handling unit can improve occupant comfort by precisely controlling humidity through the modulating hot gas reheat system
    • Units are capable of heat pump operation to provide an energy efficient heating system
    • Indoor air quality is maintained through 1 inch filters that can easily be replaced through the unit's filter access panel
  • Air handling unit with direct expansion coils from 800 - 2,000 cfm
  • Heating from hot water coils, electric elements and heat pump operation
  • Split system heat pump with air-source, water-source, and geothermal configurations allow for energy efficient cooling and heating
  • The F1 Series indoor air handling unit is designed for multi-position applications. The unit may be positioned with a vertical (upflow) or horizontal orientation as required by the installation
  • Rigid galvanized construction and foil faced insulation provide a sturdy and dependable air handling unit that promotes indoor air quality
  • The sloped corrosion resistant drain pan eliminates standing water that can support microbial growth. The drain pan will not corrode and contaminate the air stream. The drain pan connections are positioned in multiple locations for installation flexibility.
  • Blowers are individually selected to match external static, sound, efficiency, and space design criteria
  • Variable speed fans are included to create a high efficiency system that reduces initial and operating expenses
  • Unit wiring is completely factory provided with color-coded wires
  • Units are provided with specific unit color-coded wiring diagrams that are laminated and permanently affixed inside control compartment access door
  • Factory run test and inspection reports are included with the unit
  • Units are available with thermal expansion valves to simplify installation and improve reliability
  • The F1 Series air handling unit can improve occupant comfort by precisely controlling humidity through the modulating hot gas reheat system
  • Units are capable of heat pump operation to provide an energy efficient heating system
  • Indoor air quality is maintained through 1 inch filters that can easily be replaced through the unit's filter access panel
