AAON_ProFit_Vertical
AAON_ProFit_Vertical
ALL PRODUCTS

WV Series

The EcoFit Vertical Water-Source Heat Pumps are designed to address the unique needs of the New Construction market. EcoFit Water-Source Heat Pumps feature a wide array of selectable options to allow design engineers and owners to optimize the equipment required to address unique building requirements and provide excellent efficiency.

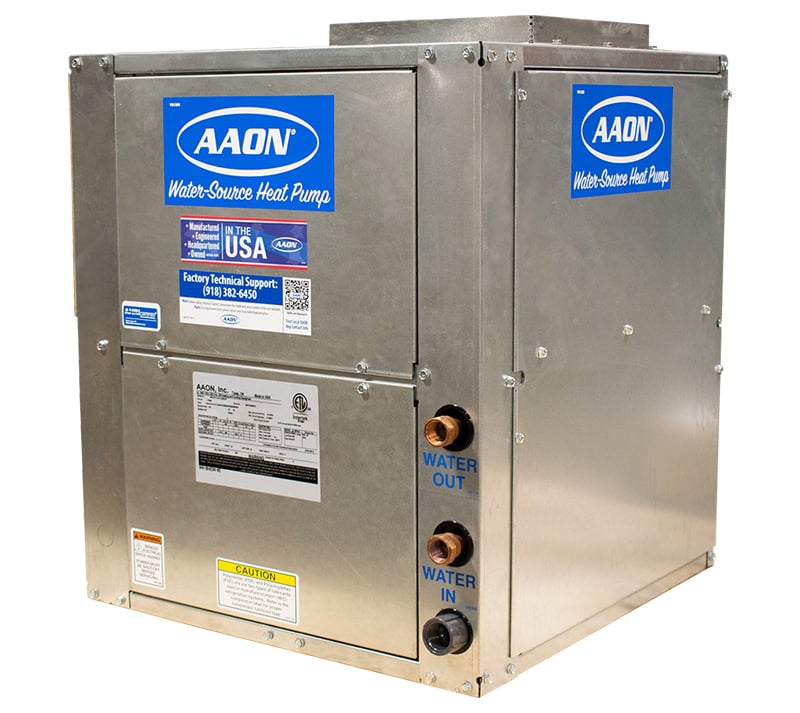

The ProFit Vertical Replacement Water-Source Heat Pumps are designed to be a “drop-in” replacement for most existing Water-Source Heat Pumps.

Capacity:

½ - 12½ TONS

SPECIFICATIONS

  • Applications
    • Vertical configuration water-source heat pumps, from ½ to 12½ tons
    • Multiple levels of efficiency
  • Performance
    • Aluminum microchannel DX coil with large face are for improved efficiency, reduced air pressure drop, reduced fan horsepower, reduced refrigerant charge and reduced unit weight.
    • Copper coaxial refrigerant-to-water heat exchanger for reliable operation
    • High efficiency direct drive forward curved supply fans available with permanent split capacitor (PSC) motors or electronically commutated motors (ECM).
  • Quality
    • Replacement-ready size matches with conventional water-source heat pumps.
    • Left or right-hand return.
    • Top discharge
    • Sloped stainless steel drain pan includes automated TIG and induction welding.
    • Integrated internal condensate P-Trap within the cabinet eliminates need for housekeeping pad.
    • Induction brazed copper piping connections


  • Standard Features
    • R-410A scroll (2 to 12½ tons) or rotary (½ to 1½ tons) compressors for reliable operation
    • Direct drive ECM driven backward curved plenum fan is standard on the A and B cabinets (½ to 1½ tons).
    • AAON Pioneer Silver Controller with terminal block for connection to standard thermostat heat pump thermostat
  • Options
    • Corrosion resistant cupronickel coaxial refrigerant-to-water heat exchanger
    • Factory installed non-fused disconnect switch
    • Low sound package reduces unit sound
    • Factory provided return air duct connection
    • ECM fan speed control dehumidification mode fan speed control
    • Hot gas reheat dehumidification
    • Waterside economizer with three-way motorized valve
    • Ground/ground water loop insulation for geothermal application

  • Sustainability
    • Sturdy galvanize steel construction with fiberglass insulation
    • Five-year parts warranty - standard!
  • Health/IAQ
    Four-inch filter rack available with high efficiency filters, up to MERV 14.
  • Vertical configuration water-source heat pumps, from ½ to 12½ tons
  • Multiple levels of efficiency
  • Aluminum microchannel DX coil with large face are for improved efficiency, reduced air pressure drop, reduced fan horsepower, reduced refrigerant charge and reduced unit weight.
  • Copper coaxial refrigerant-to-water heat exchanger for reliable operation
  • High efficiency direct drive forward curved supply fans available with permanent split capacitor (PSC) motors or electronically commutated motors (ECM).
  • Replacement-ready size matches with conventional water-source heat pumps.
  • Left or right-hand return.
  • Top discharge
  • Sloped stainless steel drain pan includes automated TIG and induction welding.
  • Integrated internal condensate P-Trap within the cabinet eliminates need for housekeeping pad.
  • Induction brazed copper piping connections


  • R-410A scroll (2 to 12½ tons) or rotary (½ to 1½ tons) compressors for reliable operation
  • Direct drive ECM driven backward curved plenum fan is standard on the A and B cabinets (½ to 1½ tons).
  • AAON Pioneer Silver Controller with terminal block for connection to standard thermostat heat pump thermostat
  • Corrosion resistant cupronickel coaxial refrigerant-to-water heat exchanger
  • Factory installed non-fused disconnect switch
  • Low sound package reduces unit sound
  • Factory provided return air duct connection
  • ECM fan speed control dehumidification mode fan speed control
  • Hot gas reheat dehumidification
  • Waterside economizer with three-way motorized valve
  • Ground/ground water loop insulation for geothermal application

  • Sturdy galvanize steel construction with fiberglass insulation
  • Five-year parts warranty - standard!
Four-inch filter rack available with high efficiency filters, up to MERV 14.
