GPCXP
GPCXP
ALL PRODUCTS

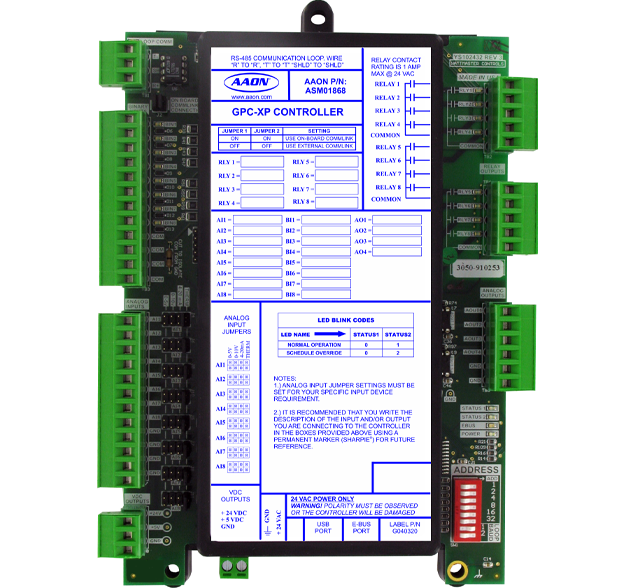

General Purpose Controller

The AAON General Purpose Controller (GPC-XP) provides the flexibility to control unique equipment and processes beyond the standard air-handling unit.

SPECIFICATIONS

  • Applications
    The GPC-XP Controller provides user-defined inputs and outputs to fulfill a variety of application needs.
    • Exhaust Fan
    • In-Floor Zone Heating
    • Humidification Control
    • Lighting Control
    • Fan coil unit
    • Chiller Plant
    • Boiler Plant
    • Heat Pump GEO Thermal Loop Control
    • Lead/Lag Control
    • Averaging of up to seven analog sensors like CO2 to broadcast to acceptable VCCX2 inputs
    • Master Scheduler for site (up to eight unique schedules per GPC-XP)
    The GPC-XP Controller provides great application flexibility.
  • Features

    The GPC-XP Controller provides a variety of standard and unique features.

    • Configurable analog inputs
    • Wet contact binary inputs configured for normally closed or open operation
    • Relay outputs for on/off control
    • Analog outputs for proportional control signals
    • Schedules can be broadcast to other equipment
    • On-board Commlink for stand-alone programming
    • Configurable with drop down selection
  • Quality

    Controls quality and reliability are crucial to a positive ownership experience. AAON unit controllers’ low failure rate is directly attributed to our quality process:

    • UL certified to ensure industry safety criteria are met.
    • During the design stage, durability is assessed through our environmental and electrical testing.
    • Controllers go through continued testing in all phases of production to ensure integrity of the product.
    • To complement our quality process, our support teams provide feedback integral for continual improvement.
The GPC-XP Controller provides user-defined inputs and outputs to fulfill a variety of application needs.
  • Exhaust Fan
  • In-Floor Zone Heating
  • Humidification Control
  • Lighting Control
  • Fan coil unit
  • Chiller Plant
  • Boiler Plant
  • Heat Pump GEO Thermal Loop Control
  • Lead/Lag Control
  • Averaging of up to seven analog sensors like CO2 to broadcast to acceptable VCCX2 inputs
  • Master Scheduler for site (up to eight unique schedules per GPC-XP)
The GPC-XP Controller provides great application flexibility.

The GPC-XP Controller provides a variety of standard and unique features.

  • Configurable analog inputs
  • Wet contact binary inputs configured for normally closed or open operation
  • Relay outputs for on/off control
  • Analog outputs for proportional control signals
  • Schedules can be broadcast to other equipment
  • On-board Commlink for stand-alone programming
  • Configurable with drop down selection

Controls quality and reliability are crucial to a positive ownership experience. AAON unit controllers’ low failure rate is directly attributed to our quality process:

  • UL certified to ensure industry safety criteria are met.
  • During the design stage, durability is assessed through our environmental and electrical testing.
  • Controllers go through continued testing in all phases of production to ensure integrity of the product.
  • To complement our quality process, our support teams provide feedback integral for continual improvement.
