Direct Drive vs. Belt Drive Fans: Key Differences Explained

Understanding how these two fan types operate can help you select the right solution for your facility or project.

In HVAC system design, one of the critical decisions is choosing between belt drive and direct drive fans. Each system offers advantages and drawbacks, depending on the application, budget, and maintenance capabilities.

What Are Belt Drive Fans?

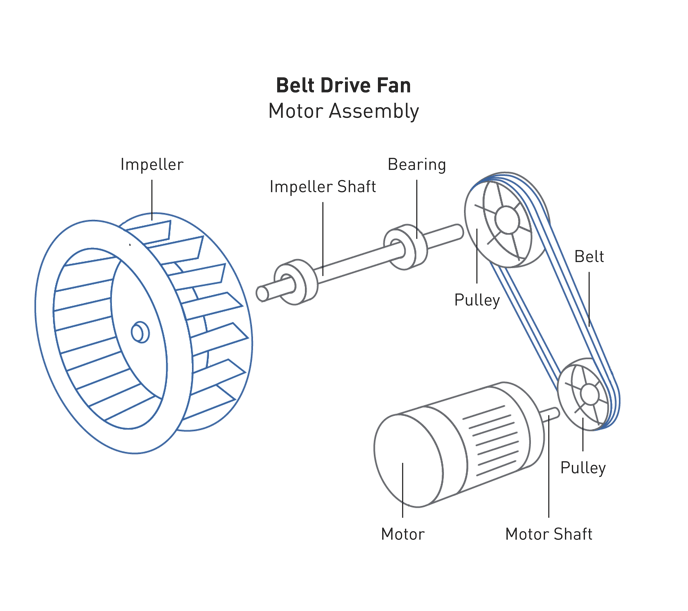

Belt drive fans use a system of belts and pulleys to transfer power from a motor to the fan. In this system, the motor is mounted separately from the fan assembly. A belt connects a motor shaft pulley to a pulley on the impeller shaft, enabling the motor to drive the fan indirectly.

Key Components:

• Motor: Provides the mechanical power.
• Pulleys: Attached to both the motor shaft and fan shaft to facilitate power transfer.
• Belt: Connects the pulleys and transmits the rotation.
• Impeller Shaft & Bearings: Support the rotating fan assembly and help reduce friction.
• Impeller: Fan blades, hub, and wheel
• Motor Starter or VFD: often needed to control the motor's power, protect it from overload, and enable controlled starting and stopping

A belt drive system with a motor starter allows for flexibility in fan speed adjustment by simply changing pulley sizes without altering the motor.  This commonly used when balancing a system or making adjustments to constant airflow applications.  When the fan speed needs to regularly change to match fluctuating loads and reduce operating costs, a variable frequency drive (VFD) is used.  A VFD is an electronic device that controls the speed of an AC motor by varying the frequency and voltage of the electrical power supplied to it.  A VFD can be used instead of a motor starter to allow for a soft start, extending the motor life and minimizing belt tension strain.

Types of Motors

• Permanent Split Capacitor (PSC) Motors: An inexpensive, single-phase, and reliable AC motor commonly used in residential and small commercial applications.
• Induction Motor (Squirrel Cage): An AC motor that uses three-phase power to enable higher starting torque for larger applications.
• Permanent Magnet (PMAC) Motors:  A more expensive AC motor in which a magnet eliminates the need for power to generate and maintain a magnetic field, improving efficiency and providing lower motor temperatures.

What Are Direct Drive Fans?

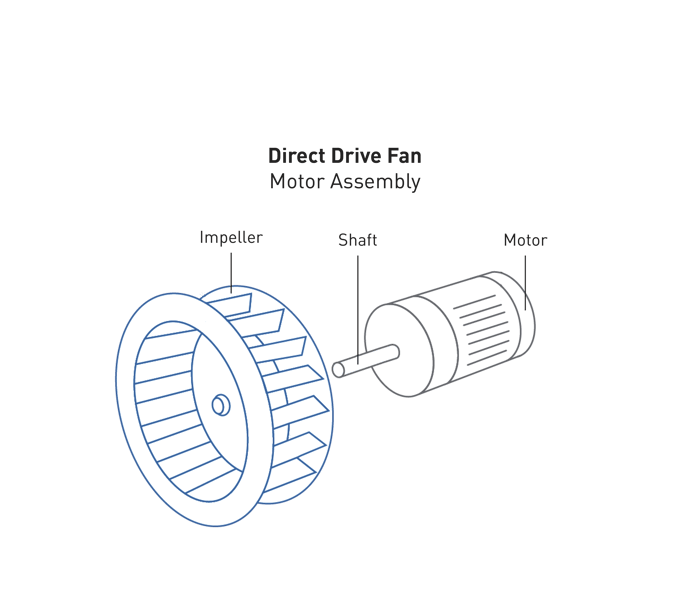

Direct drive fans operate with the impeller directly connected to the motor shaft, therefore the fan rotates at the same speed as the motor. This arrangement eliminates the need for belts and pulleys, and reduces the number of bearings resulting in lower power transmission loss. This enhances the efficiency direct drive fans can offer.

Key Components:

• Motor: Provides the mechanical power.
• Shaft: Support the rotating fan assembly (impeller)
• Impeller: Fan blades, hub, and wheel
• Motor Starter or VFD: often needed to control the motor's power, protect it from overload, and enable controlled starting and stopping (unless using a EC Motor)

Common Type of Motor:

Electronically Commutated Motors (ECM or EC Motors): This motor like the PMAC includes a permanent magnet but converts the AC to DC internally via an inverter.  An ECM can adjust motor speed via an integrated microcontroller, providing the control advantages of a VFD without the need for an additional piece of equipment.  ECM direct drive fans are often used in modern, energy-efficient HVAC systems due to their efficiency and ability to optimize energy consumption. These motors are primarily seen in direct drive applications.  Although availability continues to evolve, the EC motor is limited to smaller fan sizes.

Pros and Cons

Belt Drive Fans

Pros:

• Lower Initial Cost: Basic components and standard AC motors keep initial investment affordable.

• Simple Constant Speed Control: Easy to adjust to a set fan speed by modifying pulley ratios without the need for a VFD or advanced controls.

• Motor Location: The arrangement allows the motor be located outside the airstream for protection which is desirable in inhospitable environments associated with some industrial applications.

• Large Applications: May be the only option for especially large fan sizes.

Cons:

• Dynamic Variable Speed Control: Requires a VFD, which adds cost, programming, and complexity, undermining the benefit of a lower initial cost.

• Higher Maintenance Costs: More mechanical parts increases the potential for failures and regular maintenance related to belt replacement and the bearings on both the impeller and motor shaft must be accounted for.

• Lower Energy Efficiency: Since energy is transferred indirectly from the motor to the fan through belts and pulleys, there is some power loss, making the system less efficient overall.

• Air Quality Concerns: Worn belts release residue as they age and deteriorate, affecting indoor air quality when the belts are located in the air distribution system.

• Increased Noise: The presence of belts and pulleys may produce more noise.

Direct Drive Fans

Pros:

• Easy Dynamic Variable Speed Control: When using a EC Motor, speed is adjusted via an integrated microcontroller, eliminating the need for a VFD.  When using other motor types, A VFD is easily incorporated to adjust fan speed to match demand.

• Greater Efficiency: Power is transferred directly from the motor to the fan, minimizing energy losses.

• Low Maintenance: Fewer components reduce the risk of mechanical failure, increasing reliability.  Eliminating the need for belt replacement and having fewer bearings that need to be serviced reduces regular maintenance and lowers maintenance costs.

• Improved Air Quality: No belts means no rubber residue or particles being released to the indoor air.

• Generally Quieter: With fewer moving parts and no belts, direct drive fans are generally quieter than belt drive systems.

• Compact Design and Simpler Design: Eliminating a shaft and its associated bearings, two pulleys, and a belt reduces both the space required and complexity of the system.

Cons:

• Higher Upfront Cost: EC motors have a higher initial price; however, this may be recovered in the savings associated with a VFD.

• Size Limitations: EC motors and direct drive fans often have limits as to their size availability.  Manufacturers continue to extend these limits to serve larger applications.

• Motor Location: Since the motor is located in the airstream, it should be avoided when exposure could damage the motor (chemicals, high heat, air-borne particulate, etc.).

By understanding the differences between direct drive and belt drive fans, you can make informed decisions that balance key factors like performance, maintenance, air quality, and cost to find the ideal solution for your application.
